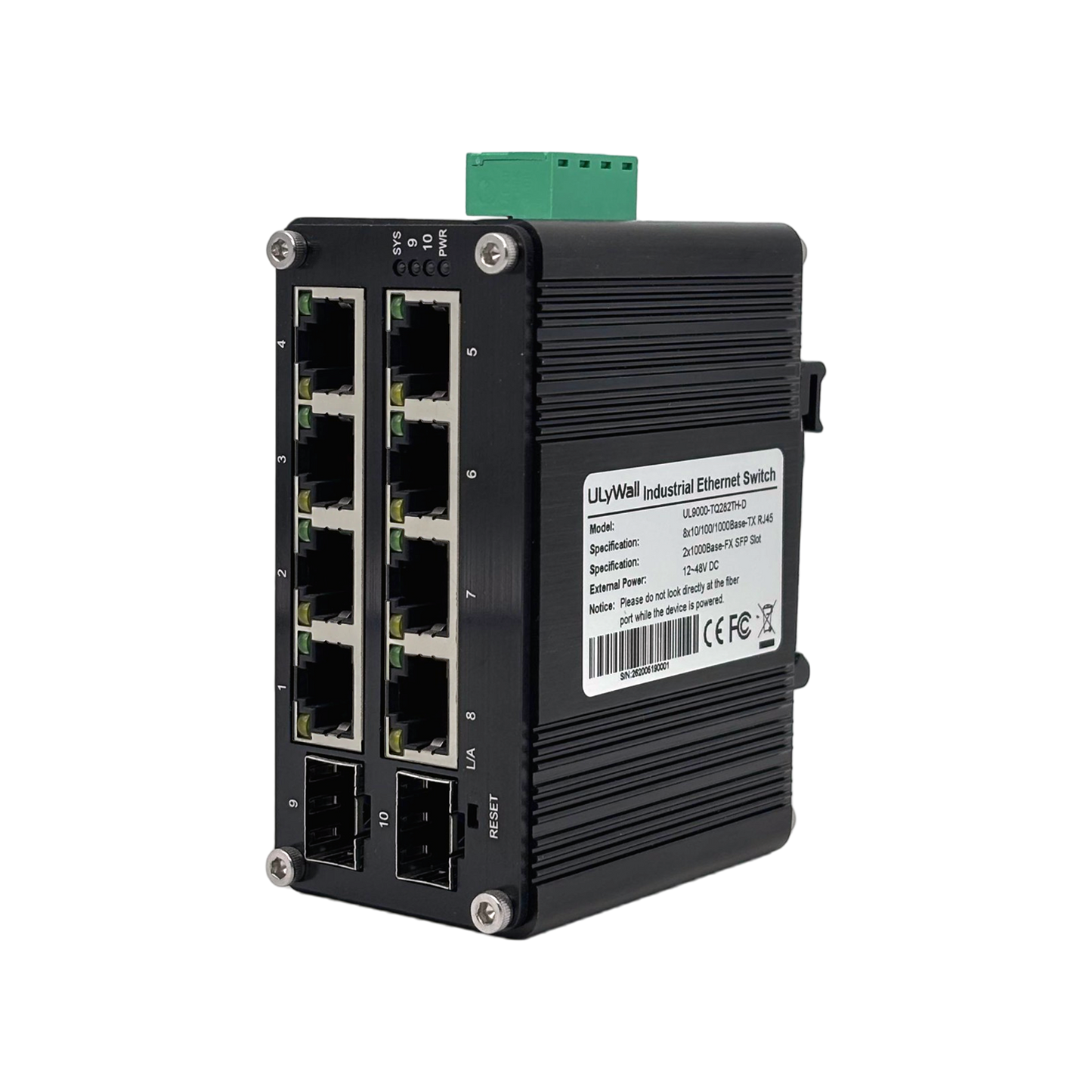

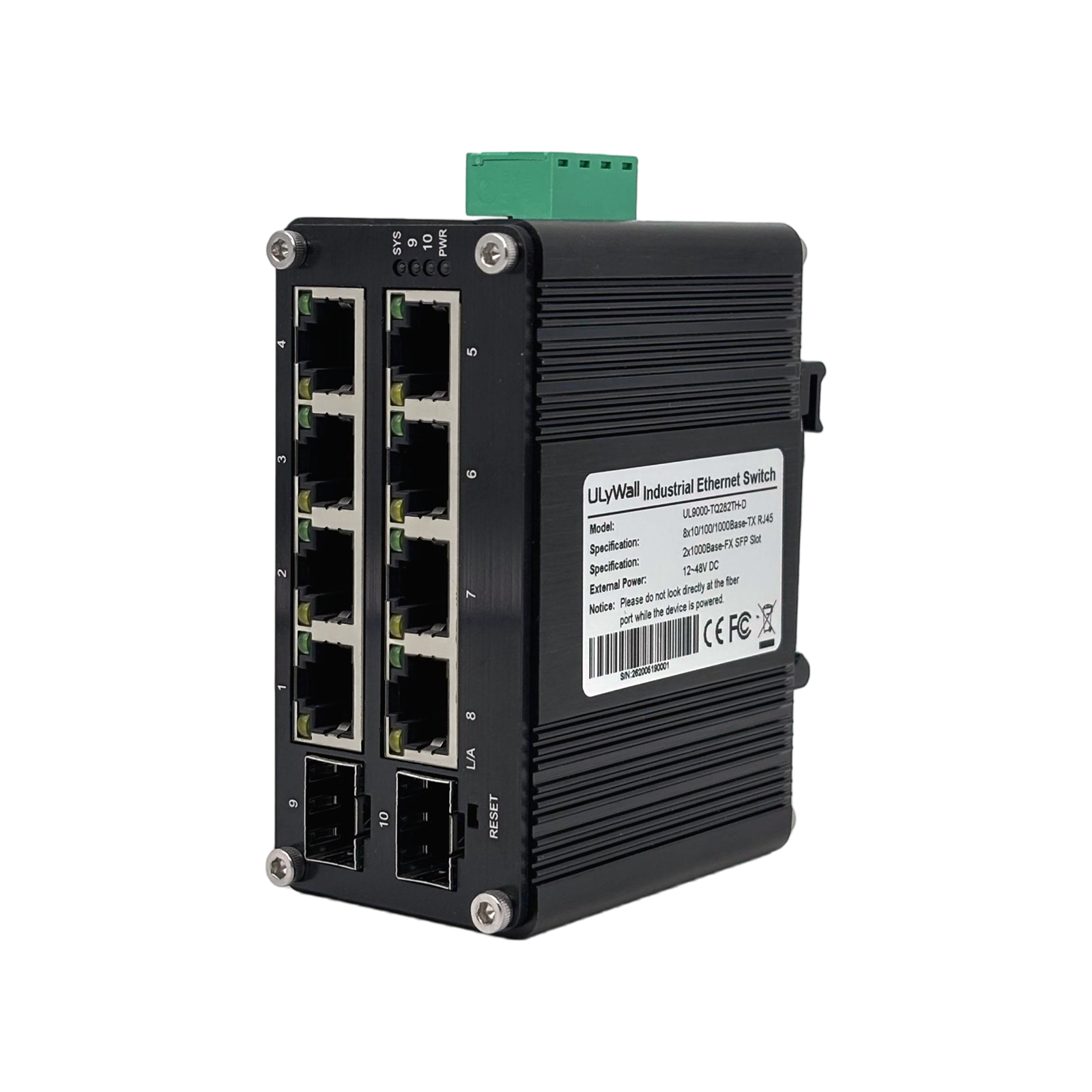

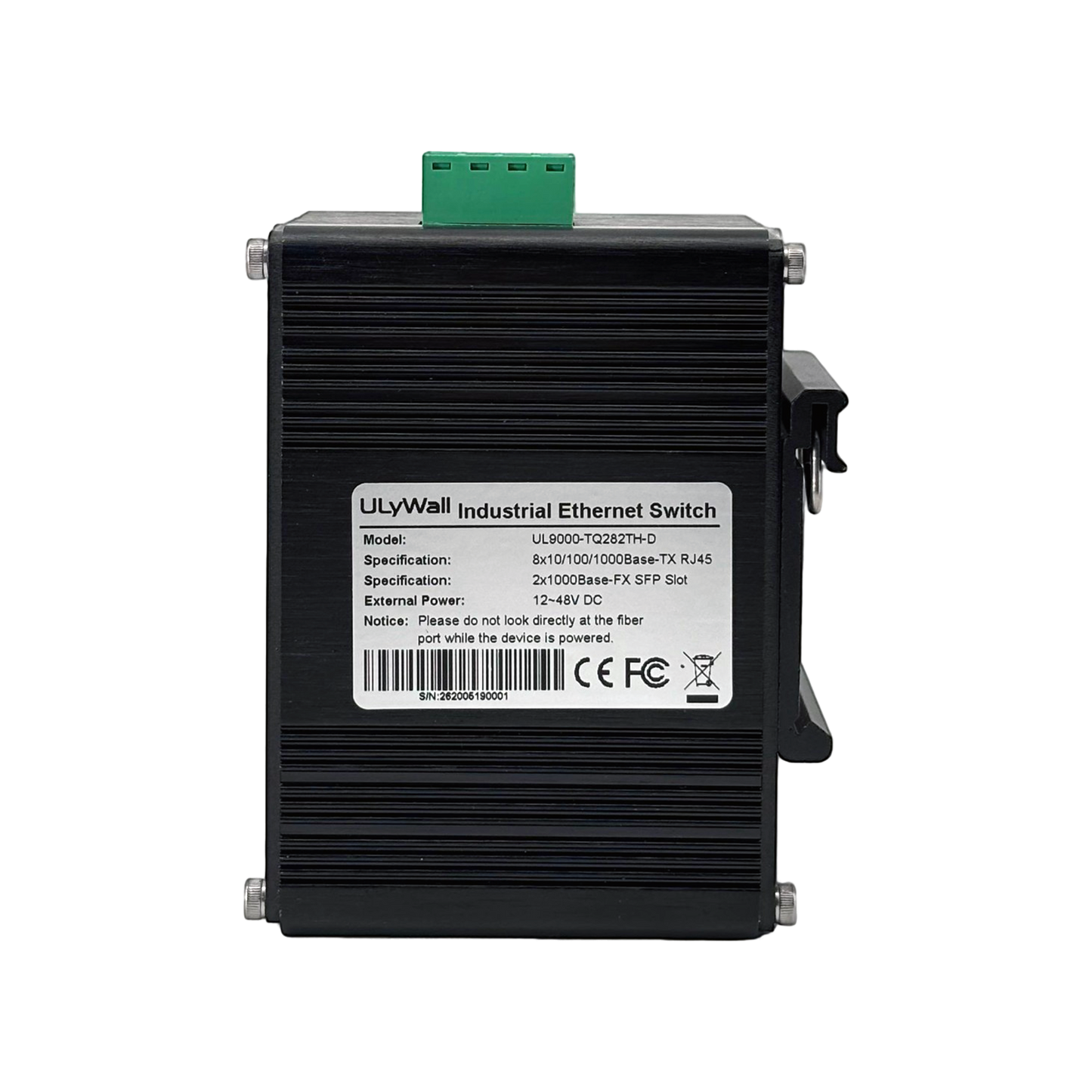

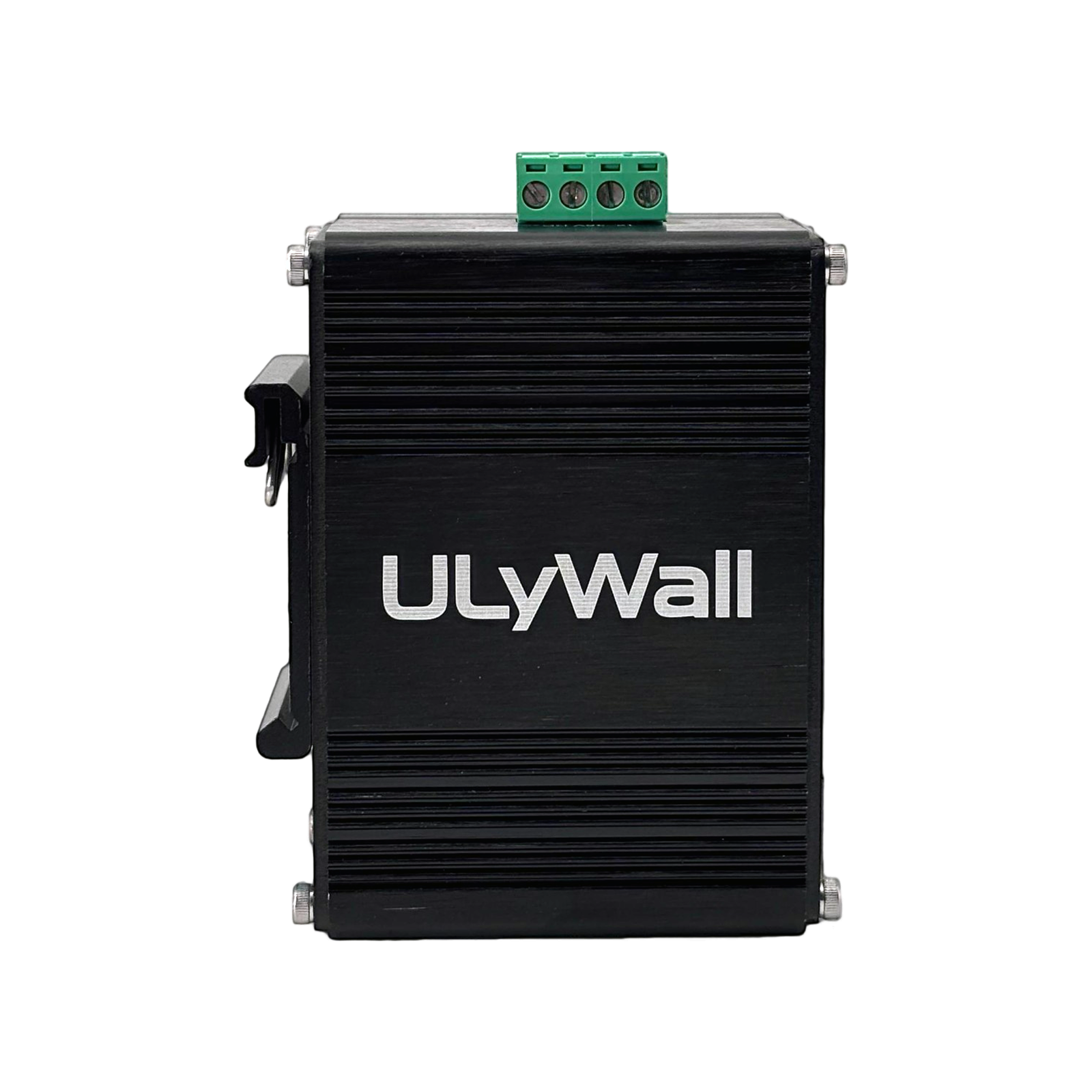

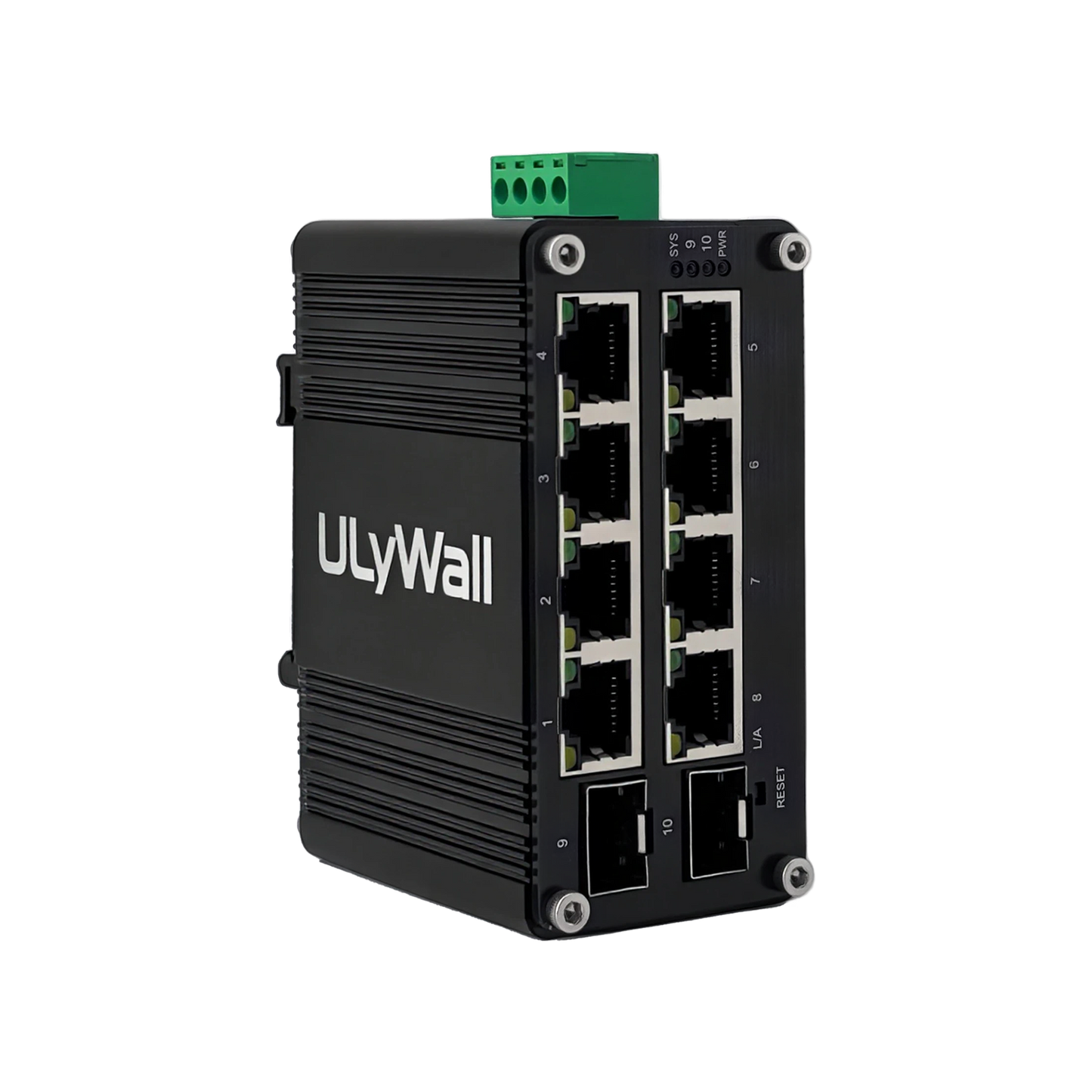

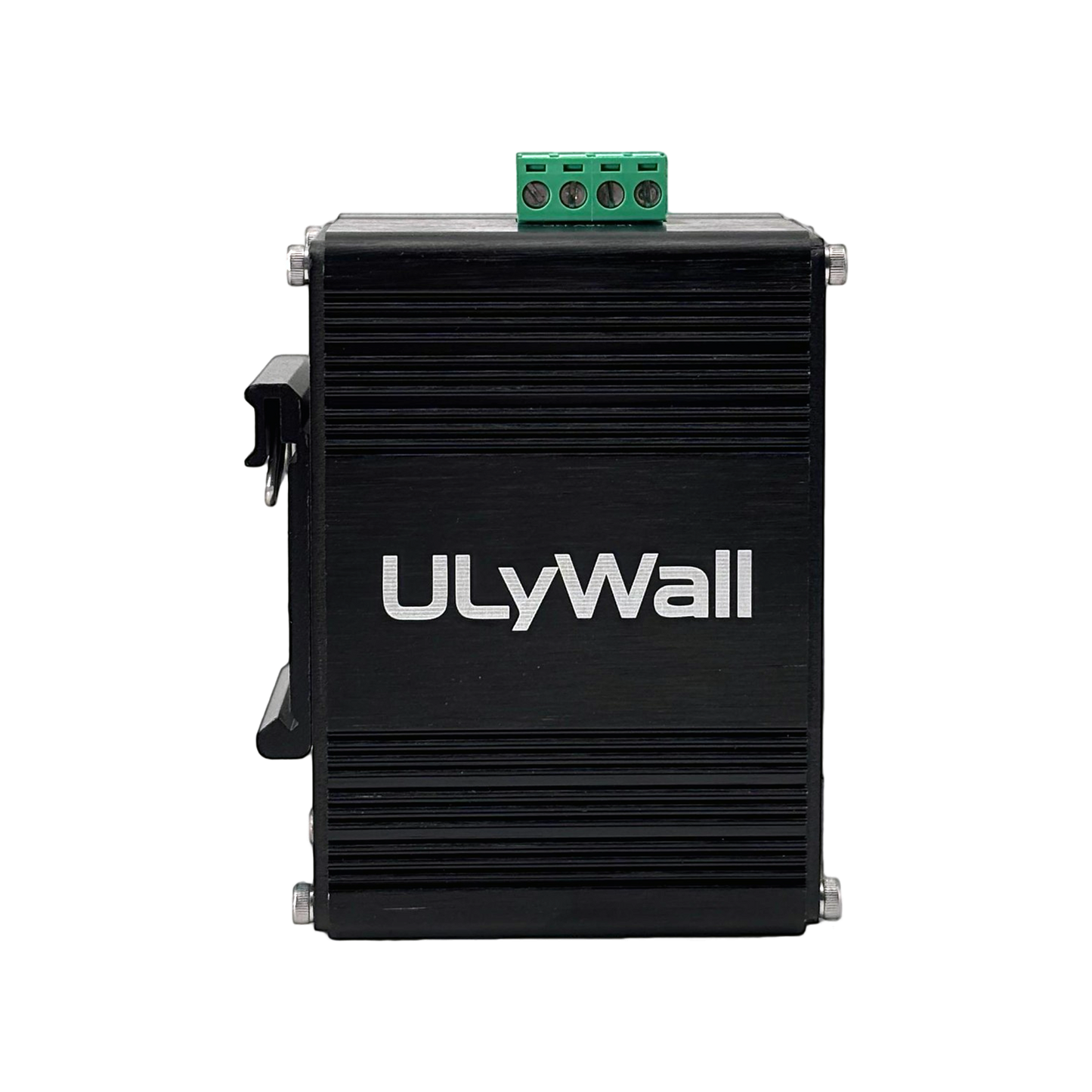

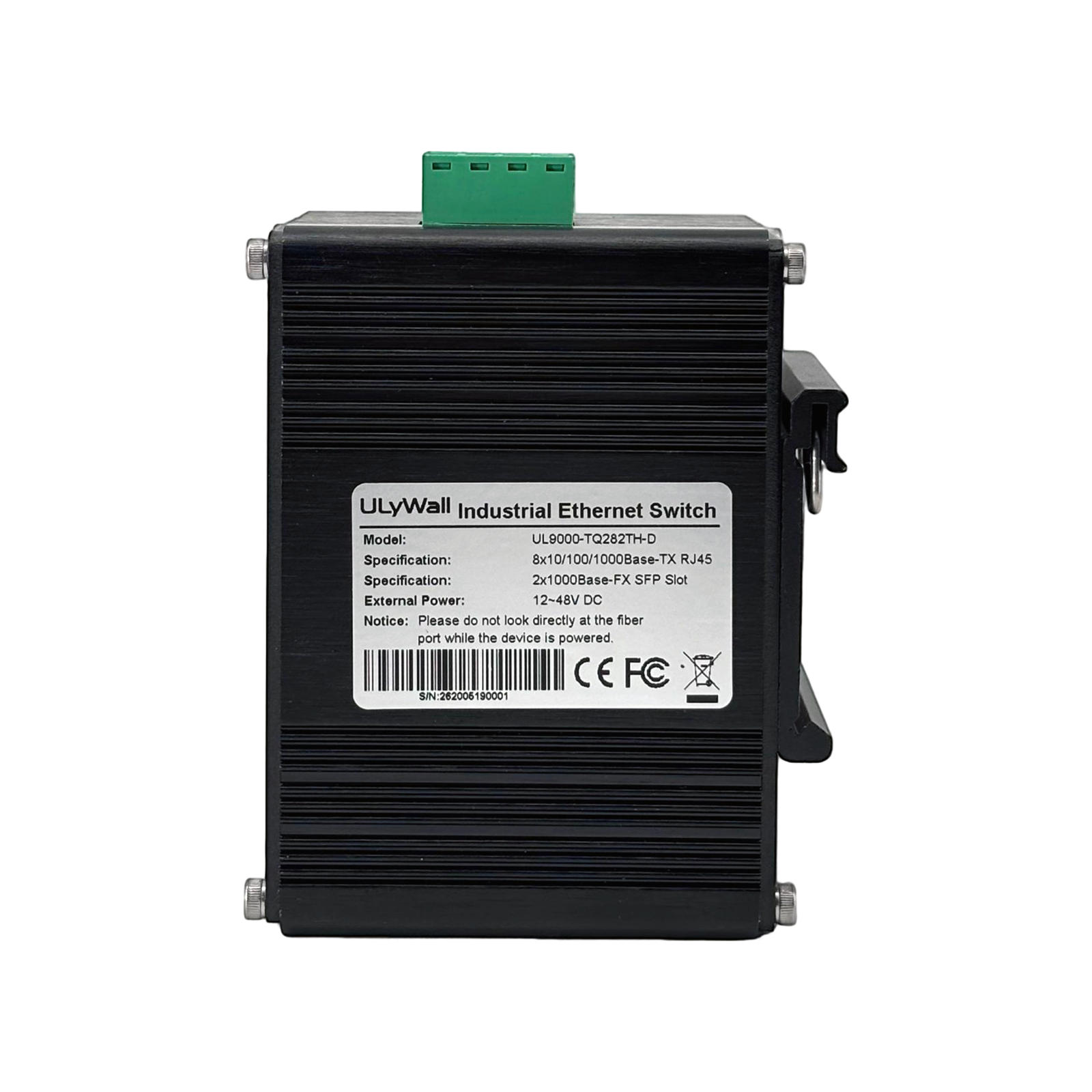

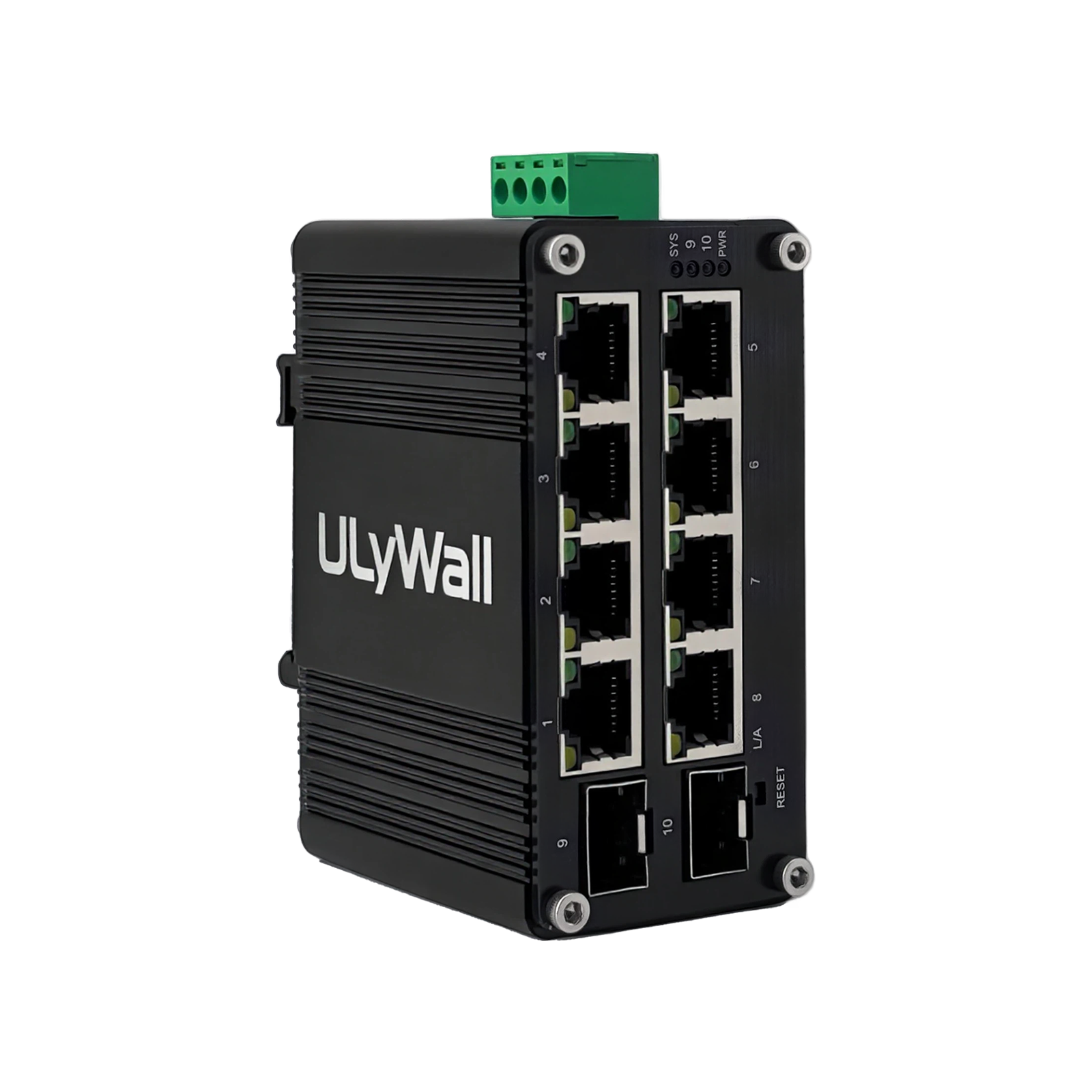

ULyWall 8-Port Gigabit Industrial Managed Switch with 2 SFP
Couldn't load pickup availability
Overview

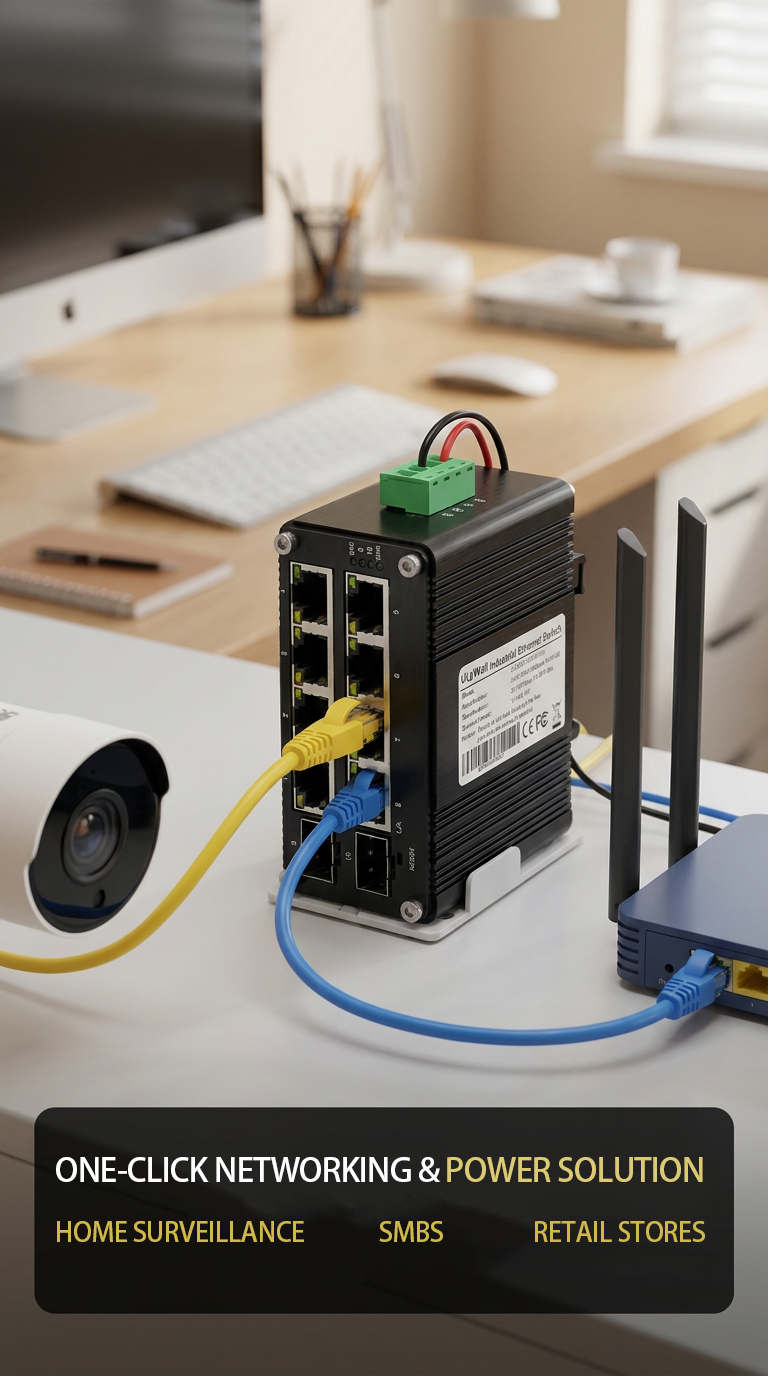

ULyWall UL9000-TQ282TH-D is a managed industrial network switch, featuring 8×10/100/1000Base-TX RJ45 ports and 2×100/1000Base-X SFP ports. The SFP slots are compatible with single-mode or multi-mode fiber using 1 or 2 optical cores. Boasting robust reliability and user-friendly operation, this switch is an ideal solution for network interconnection of IP cameras, wireless access points and other devices across remote sites.
Features
► 8x10/100/1000Base-TX + 2x100/1000Base-X SFP
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports WEB Management
► Supports 802.3x Flow Control
► Support IEEE802.3/802.3u/802.3ab/802.3z/802.3x store and forward mode
► Support IEEE 802.3D/W/S standard STP/RSTP protocol
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs

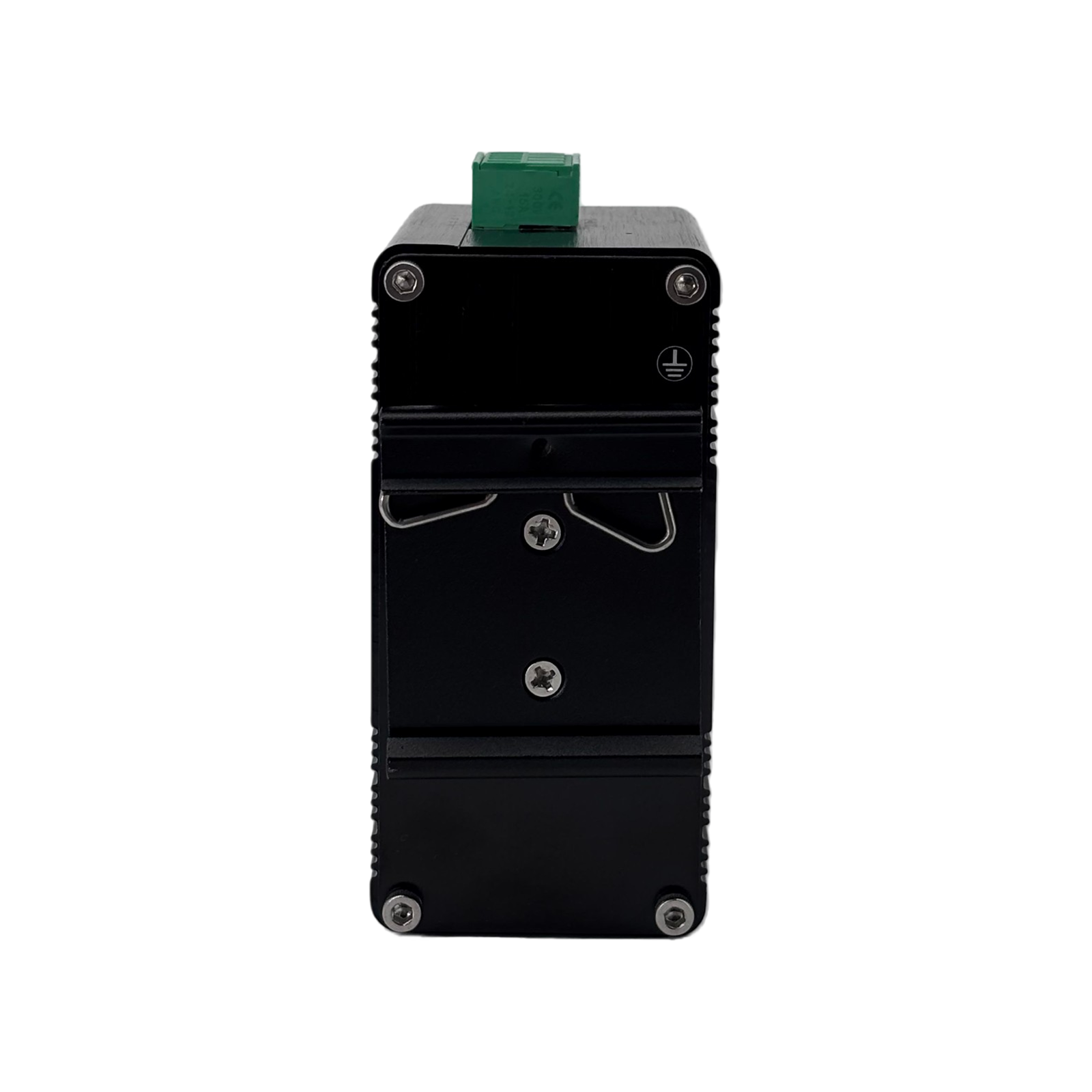

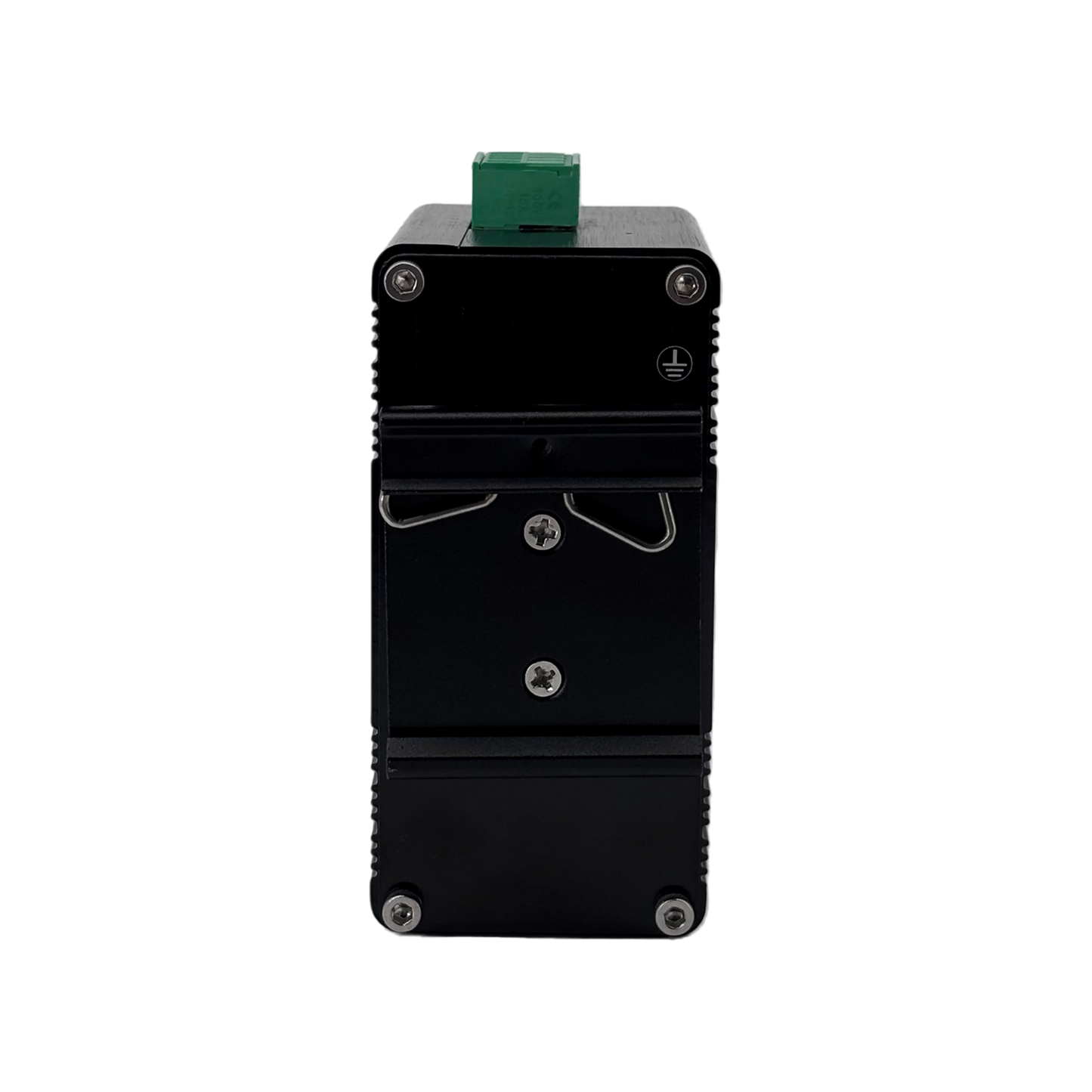

► Supports DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature.
|
Ethernet |
|
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX/FX |
|
|
IEEE802.3ab 1000BASE-T |
|
|
IEEE802.3z 1000BASE-X |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Backplane bandwidth |
20Gbps |
|
Packet Buffer Memory: |
9216 bits |
|
Processing Type: |
Store-and-Forward |
|
Max Packet Length: |
9K Bytes Jumbo Frame |
|
Address Table Size: |
4K MAC Addresses |
|
Interface |
|
|
Ethernet Port: |
8 x RJ45 |
|
Optical Port: |
2 x 100/1000Base-X SFP |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC, Redundant Power (4-pin Terminal Block) |
|
Power Consumption: |
5W Max. |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
PWR: |
Power Status |
|
Ethernet (Per Port): |
Link/Activity |
|
Fiber: |
Gigabit SFP Port: F9~F10 |
|

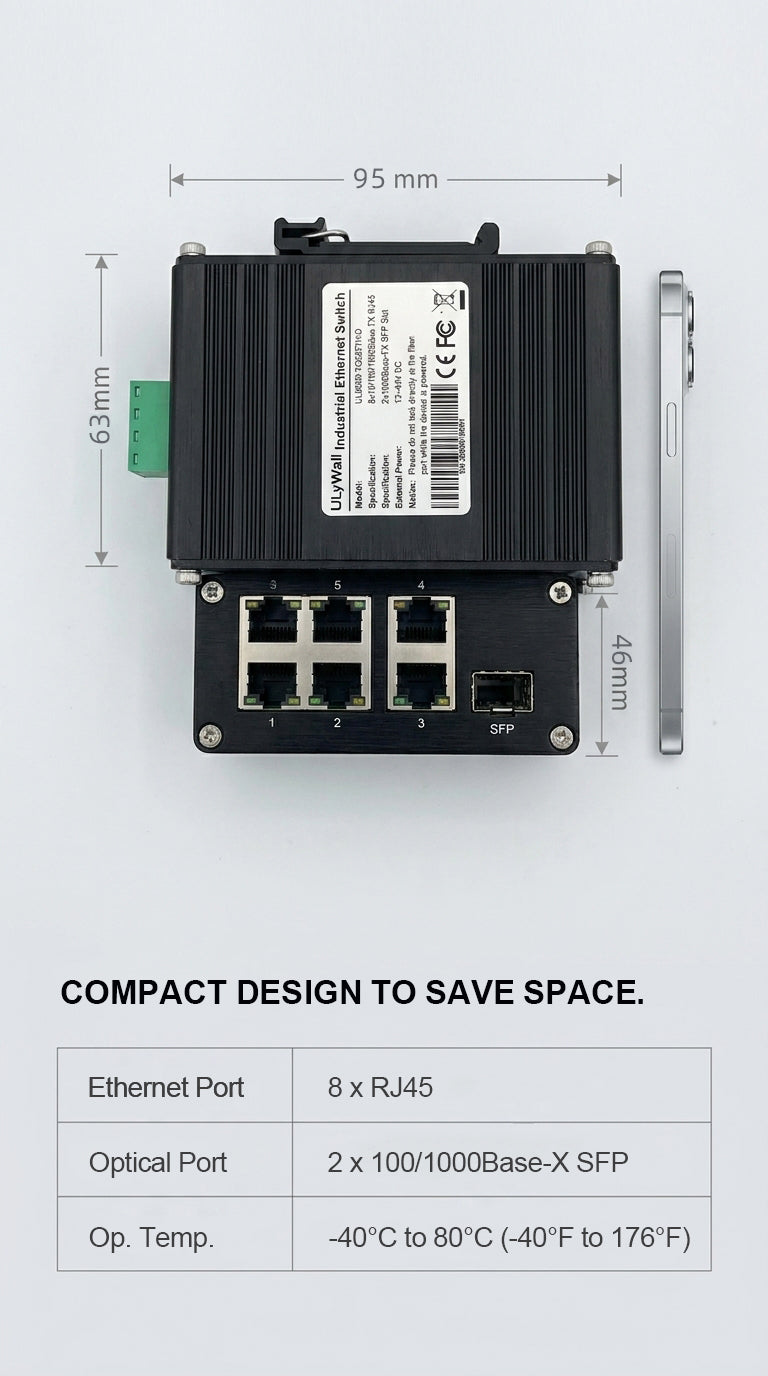

Dimensions (WxDxH): |
95 x 63 x 46 mm |
|
Weight: |
300g |
|

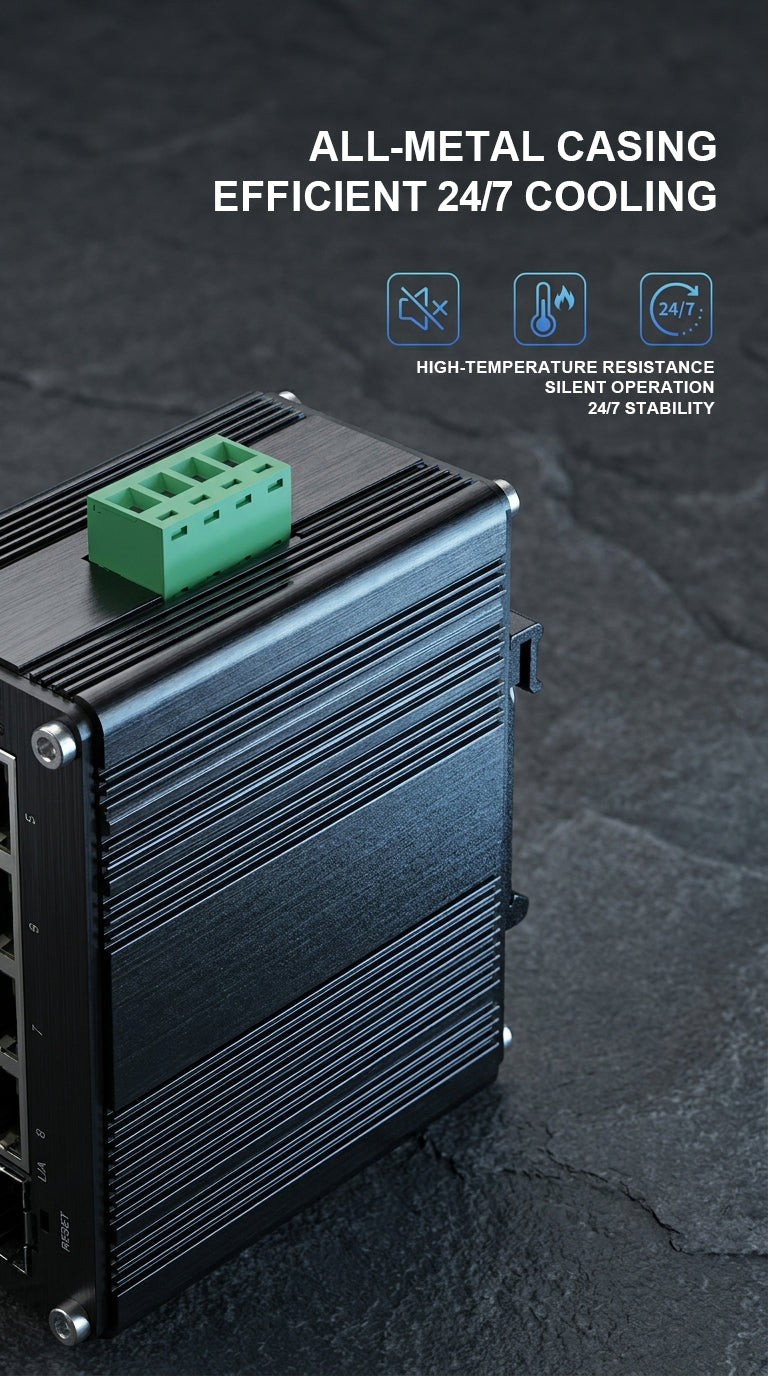

Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail mount |
|
WEB Management Functions |
|
|
System Status |
Device IP |
|
Port Configuration |
Port Settings, Port Isolation, Port Priority, Optical Power DDM, Port Rate Limiting, Storm Control, |
|
Layer 2 Features |
VLAN Configuration, MAC Address Management, MAC Address Aging, 802.1p Priority Mapping, Queue Scheduling, ACL, MTU Configuration |
|
Port Statistics |
Port Counters |
|
Link Backup |
ERPS, Port Aggregation, Rapid Spanning Tree |
|
Network Diagnostics |
Port Mirroring |
|
System Management |
Device Address, User Password, File Management |
|
Default IP Address |
192.168.40.253 |
|
Default Username |
admin |
|
Default Password |
admin |
|
Regulatory Approvals |
|
|
ISO9001, CE, RoHS, FCC |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55024:2010 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
